Laminating lines for PUR hotmelt lamination

Technology portfolio for PUR hotmelt laminating lines

Feeding and stacking systems
Adhesive application machines
Manual and automated laying stations
IR blasting units
Roller presses

Laminating equipment
Brushing and cleaning machines
Handling systems and robotics
Conveyor technology

PUR hotmelt laminating lines at a glance

Fully automated specialist

PUR industrial-Line: PUR coating with fully automated processes

With automated laying systems and fully automated processes, our PUR industrial lines can be specified to meet any requirement. The PUR coating lines in this segment are individually designed and developed from the ground up to meet customer-specific requirements. The advantage for you as our customer: highly customized PUR coating lines for production on an industrial scale.

Flexible universalist for PUR HOTMELT

PUR easy-Line: PUR coating line for smaller batch sizes

Our PUR easy-Line is suitable for almost all hotmelt applications and enables the production of smaller batch sizes. The manual lay-up area with various expansion options for automated production is the ideal PUR coating line for SMEs and smaller coating companies in the PUR hotmelt sector.

Expandable generalist for PUR HOTMELT

PUR multi-Line: PUR coating line for higher capacities

The PUR multi-Line has been developed to meet high quality and performance requirements and an intuitive operating concept for all solution sizes. Various automation solutions combined with a wide range of coating equipment make the coating system the optimum solution for PUR hotmelt coating in higher production volumes.

Experience that pays off: Innovative laminating lines

The processing of PUR adhesives in laminating technology requires efficient and innovative technologies. The know-how in process engineering acquired over decades is reflected in our PUR line laminating lines. The core components of the roller coating machines and roller presses are uniform across all lines and thus combine individual line planning with modular expandability.

Simple laminating with the PUR easy-Line

Cleaning and glue application

The boards are first cleaned by the brush cleaning machine and freed from dust and contamination. Afterwards, the top side of the workpiece is glued by our RCGT-E glue application machine.

Lay-up area

The sheet stock is made available to the machine operator via the lay-up rack above the transport roller conveyor. This makes it possible to lay the sheets accurately and cleanly in an extremely ergonomic manner. High-quality and consistent surface finishes are thus permanently guaranteed, even for one machine operator.

Pressing on the foil sheets

For the best possible bonding of workpiece and coating material, the panels pass through our roller press after the lay-up area. Any air bubbles, waves or other unwanted surface irritations are prevented by this process and a high-quality surface is guaranteed.

1

Cleaning and glue application

The boards are first cleaned by the brush cleaning machine and freed from dust and contamination. Afterwards, the top side of the workpiece is glued by our RCGT-E glue application machine.

2

Lay-up area

The sheet stock is made available to the machine operator via the lay-up rack above the transport roller conveyor. This makes it possible to lay the sheets accurately and cleanly in an extremely ergonomic manner. High-quality and consistent surface finishes are thus permanently guaranteed, even for one machine operator.

3

Pressing on the foil sheets

For the best possible bonding of workpiece and coating material, the panels pass through our roller press after the lay-up area. Any air bubbles, waves or other unwanted surface irritations are prevented by this process and a high-quality surface is guaranteed.

High-performance laminating with the PUR Multiline

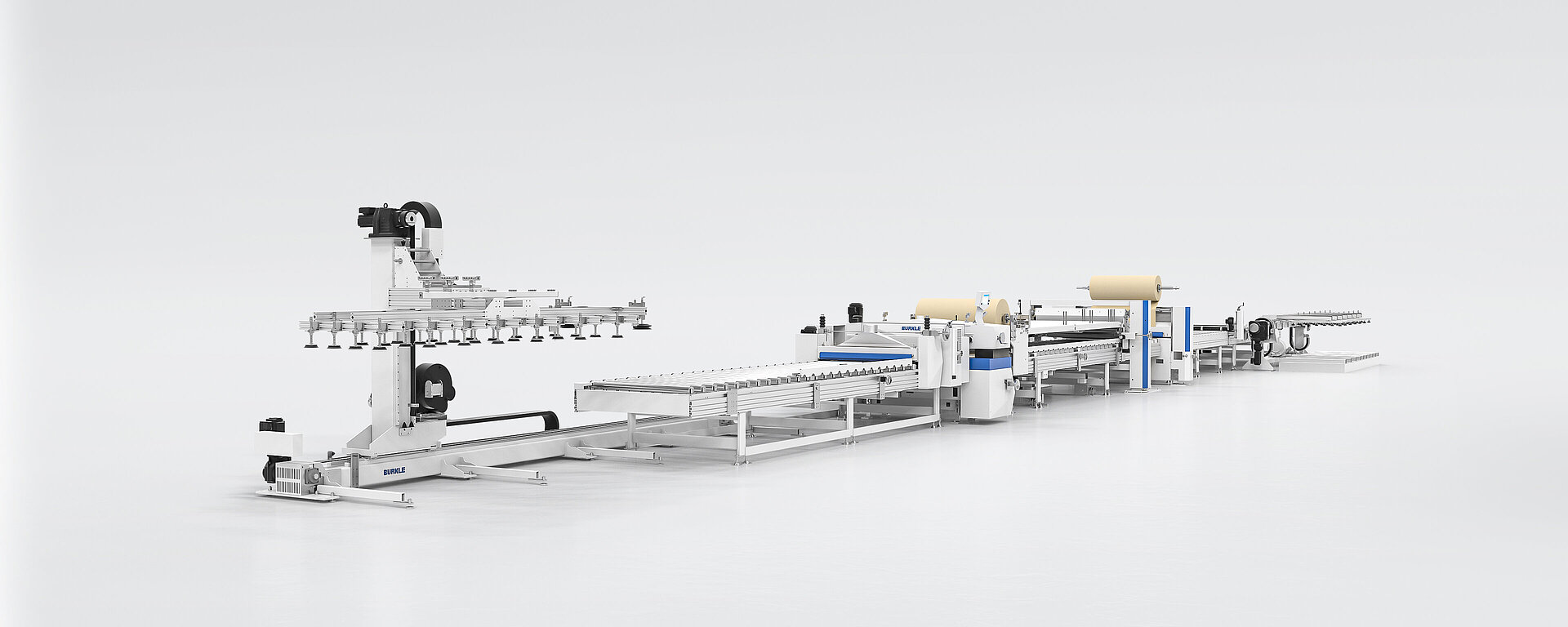

Automated feeding

Via a laterally movable vacuum portal, the workpieces are automatically placed from a workpiece stack onto the alignment roller conveyor. The panels then pass through the double-sided cleaning unit consisting of a circular brush unit and a sword brush unit.

Lay-up area

The glued wood-based panels can be laminated in the lay-up area on up to 4 different foil feed options as required. The user is thus free to choose the most convenient feed for each product and material.

Automatic stacking or turning

For high-gloss optics and completely cleaned workpieces, another Sword Brush can be used before destacking. Afterwards, destacking takes place via a vacuum turning arm, which either turns the products by 180° for a second pass or destacks them finally.

1

Automated feeding

Via a laterally movable vacuum portal, the workpieces are automatically placed from a workpiece stack onto the alignment roller conveyor. The panels then pass through the double-sided cleaning unit consisting of a circular brush unit and a sword brush unit.

2

Lay-up area

The glued wood-based panels can be laminated in the lay-up area on up to 4 different foil feed options as required. The user is thus free to choose the most convenient feed for each product and material.

3

Automatic stacking or turning

For high-gloss optics and completely cleaned workpieces, another Sword Brush can be used before destacking. Afterwards, destacking takes place via a vacuum turning arm, which either turns the products by 180° for a second pass or destacks them finally.

Powerful PUR Industrial Solutions

Portal feeding

The panel stacks are fed into the system by forklift via heavy-duty roller conveyors. The vacuum portal system separates the panels and places them on the alignment roller conveyor. From there, the plates are conveyed into the PUR line.

Automatic sheet feeding

After cleaning and one-sided gluing, another vacuum portal places the prepared sheet material fully automatically on the glued workpiece. It then moves on to the roller press to obtain optimum surface bonding.

Workpiece rotation

With the help of our drum turner, the workpiece laminated on one side is turned by 180° and fed into the second strand of the line. There, the coating of the second surface side takes place.

Stacking

Since vacuum suction cups place too much stress on the coated surface, a clamp handle system is used instead. On the hydraulic scissor lifts, finished stacks are formed on pallets for the laminated products.

1

Portal feeding

The panel stacks are fed into the system by forklift via heavy-duty roller conveyors. The vacuum portal system separates the panels and places them on the alignment roller conveyor. From there, the plates are conveyed into the PUR line.

2

Automatic sheet feeding

After cleaning and one-sided gluing, another vacuum portal places the prepared sheet material fully automatically on the glued workpiece. It then moves on to the roller press to obtain optimum surface bonding.

3

Workpiece rotation

With the help of our drum turner, the workpiece laminated on one side is turned by 180° and fed into the second strand of the line. There, the coating of the second surface side takes place.

4

Stacking

Since vacuum suction cups place too much stress on the coated surface, a clamp handle system is used instead. On the hydraulic scissor lifts, finished stacks are formed on pallets for the laminated products.

01

03

Experience BÜRKLE PUR hotmelt laminating lines

Get first insights into our know-how

Contact now

00

Find the videos here

Technologies for PUR hotmelt lamination - Our brochure

You´ll find more information about our systems and solutions in our brochure.

PUR lines

pdf - 2 MB

Your advantages of our PUR hotmelt laminating lines

Modular construction system for future expansion of existing lines.
Simple and intuitive operating concept.
Working from roll and blanks in one line

Manual or fully automatic laying-up in longitudinal and/or transverse direction.
Lines from batch size 1 to series production.
Wide range of experience in the processing of materials
