Laminators for the production of solar modules

PV module laminators at a glance

Small to medium production capacities

easyLAM SL single-level laminator: Small to medium batch production for glass backsheet modules

Our proven easyLAM concept is characterized by a single-level laminator that is ideal for small to medium production capacities for glass backsheet modules. The patented short lamination process is unique on the market and enables our customers to achieve fast single-stage lamination with higher process temperatures and shorter lamination times than conventional lamination processes.

Small to medium production capacities

easyLAM VFF single-level laminator: Small to medium series production for glass-glass modules

With the single-level design of our easyLAM VFF, we offer an ideal concept for small to medium series production. The fastest two-stage lamination process for glass-glass modules and glass backsheet modules is based on a vacuum membrane press in the first step and concludes lamination with a flat press heated on both sides. Compared to the SL process, throughput times are considerably reduced, which in turn significantly increases capacity.

High volume production

YPSATOR SL multi-level laminator: Medium to high-volume production for glass backsheet modules

The simultaneous lamination of several modules on each floor means that our YPSATOR SL PV laminator has a higher energy efficiency and production capacity than conventional laminators. The short lamination process developed and patented by us is characterized by higher process temperatures and shorter lamination times compared to conventional lamination processes.

High volume production

YPSATOR VFF multi-level laminator: Medium to large-scale production for glass-glass modules

Our patented multi-level system is also available with the VFF process. Compared to single-level laminators, our Ypsator VFF offers greater energy efficiency and production capacity thanks to the simultaneous lamination of several modules on several floors. With the vacuum flat-flat process, we supply the most powerful laminator on the market in terms of production capacity per square meter of floor space.

01

04

easy-LAM and Ypsator: Technology that convinces

Whether small, medium or large capacities, our laminators are the technological benchmark on the market. Thanks to continuous further development based on years of process experience, we offer our customers highly efficient single- or multi-level laminators. Tailored to your requirements, we supply the right solution for both glass-glass modules and glass backsheet lamination.

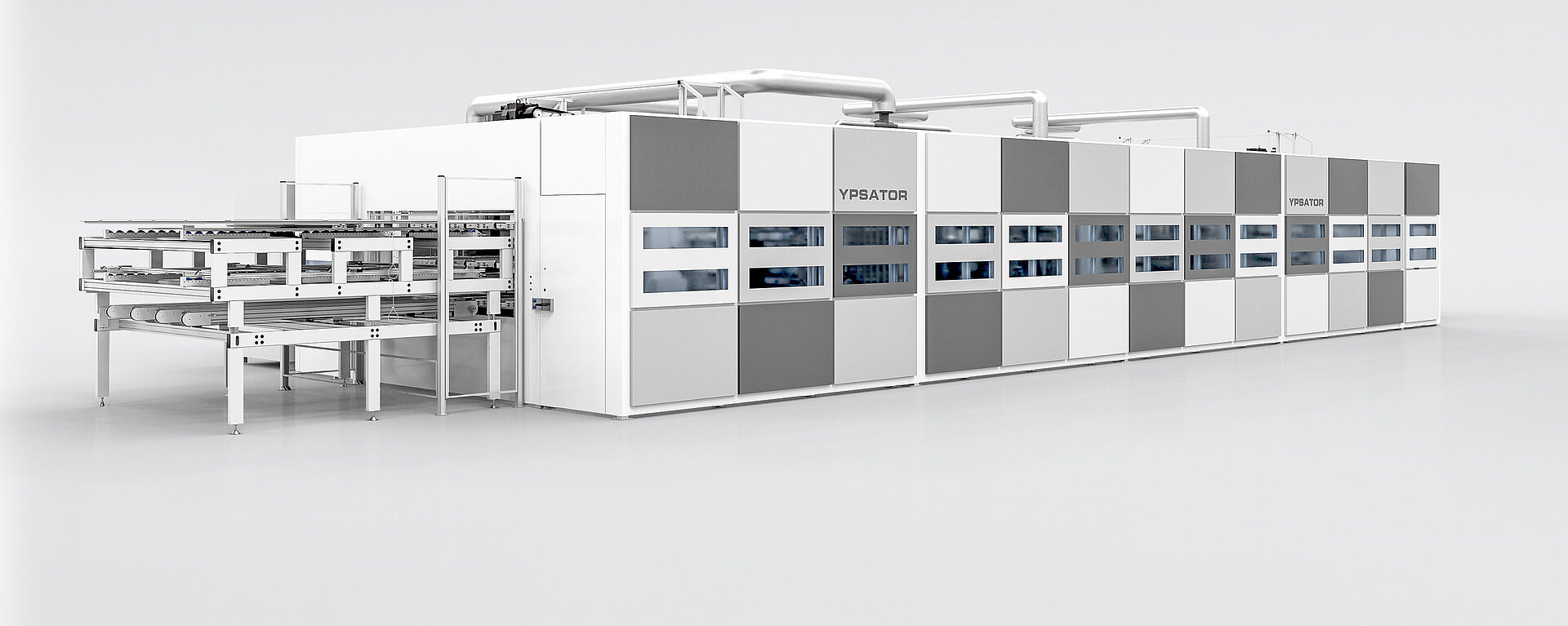

The most powerful laminator on the market: The YPSATOR VFF

For high-volume production of photovoltaic modules, manufacturers need powerful and reliable laminator technology. For this purpose, we developed the YPSATOR VFF, the most powerful laminator on the market. With the patented multi-opening technology, you as a manufacturer benefit from the largest possible laminating capacity per sqm and unparalleled energy efficiency.

Loading the multi-daylight laminator

The YPSATOR VFF is supplied with production material via an upstream belt conveyor. The multi-day charging basket then forms a batch with the production material supplied by the infeed conveyor before it is transferred to the vacuum press. A membrane changing system is installed above the infeed conveyor to speed up the membrane change.

Evacuation and prelamination of the product buildups

In the first of the three multi-daylight presses, the product buildups are first evacuated via the vacuum function to remove the laying air between the layers. The product is then efficiently and quickly prelaminated via contact heat transfer.

Hot press for final lamination

The second heated flat press completes the lamination of the product buildups. Also in this step, fast lamination and best possible efficiency are achieved via contact heat transfer. The edge overpressing that occurs with other systems is already excluded in advance via the BÜRKLE flat press system.

Cold press

The cooling press is used for controlled cooling of the laminated product buildups. Possible product defects that can occur during cooling are prevented by the flat press and ensure reliable and constant production quality. When thermoplastic films are used, the flat press also ensures the necessary curing.

Separation of the batches

Similar to the loading of the line, a final loading basket is installed downstream of the cold press. The basket takes over the entire module batch and separates it for the following belt conveyor, which transfers the products to the downstream production processes.

1

Loading the multi-daylight laminator

The YPSATOR VFF is supplied with production material via an upstream belt conveyor. The multi-day charging basket then forms a batch with the production material supplied by the infeed conveyor before it is transferred to the vacuum press. A membrane changing system is installed above the infeed conveyor to speed up the membrane change.

2

Evacuation and prelamination of the product buildups

In the first of the three multi-daylight presses, the product buildups are first evacuated via the vacuum function to remove the laying air between the layers. The product is then efficiently and quickly prelaminated via contact heat transfer.

3

Hot press for final lamination

The second heated flat press completes the lamination of the product buildups. Also in this step, fast lamination and best possible efficiency are achieved via contact heat transfer. The edge overpressing that occurs with other systems is already excluded in advance via the BÜRKLE flat press system.

4

Cold press

The cooling press is used for controlled cooling of the laminated product buildups. Possible product defects that can occur during cooling are prevented by the flat press and ensure reliable and constant production quality. When thermoplastic films are used, the flat press also ensures the necessary curing.

5

Separation of the batches

Similar to the loading of the line, a final loading basket is installed downstream of the cold press. The basket takes over the entire module batch and separates it for the following belt conveyor, which transfers the products to the downstream production processes.

For high-volume production of photovoltaic modules, manufacturers need powerful and reliable laminator technology. For this purpose, we developed the YPSATOR VFF, the most powerful laminator on the market. With the patented multi-opening technology, you as a manufacturer benefit from the largest possible laminating capacity per sqm and unparalleled energy efficiency.

Experience BÜRKLE PV module laminators

Get first insights into our know-how

Contact now

00

Find the videos here

Technologies for the photovoltaic industry - our brochure

Please refer to our brochure for the photovoltaic industry for further information.

Lamination Lines for the photovoltaic industrie

pdf - 2 MB

Your advantages of our PV module laminators

Short cycle times (high throughput)
Maximum process control through homogeneous thermal oil heating system
Double-sided heated flat press system to avoid excessive pressing of the edges in case of glass-glass modules
Cost-efficient laminating technologies
